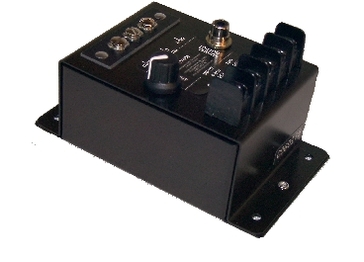

CV-600
Speaker line to line level adapter.
The CV-600 was designed to create an input from any amplified level signal. Take any speaker output level signal from 2 ohm to 100 Volt and convert it to a usable input signal to feed another piece of equipment, another amplifier in a booster configuration or line in a preamp or tape stage.
The output is either an RCA line level un-balanced or balanced 600 ohm - controllable via the on board level control. For example, with a 70.7V Input the CV-600, will produce a 1V Balanced Output Into 600 Ohms. The unit is isolation transformer coupled and shows as no additional load to the existing system.
The CV-600 was designed to create an input from any amplified level signal. Take any speaker output level signal from 2 ohm to 100 Volt and convert it to a usable input signal to feed another piece of equipment, another amplifier in a booster configuration or line in a preamp or tape stage.
The output is either an RCA line level un-balanced or balanced 600 ohm - controllable via the on board level control. For example, with a 70.7V Input the CV-600, will produce a 1V Balanced Output Into 600 Ohms. The unit is isolation transformer coupled and shows as no additional load to the existing system.
Reference Sheet Below
| cv600_rev-a.pdf |
